Linux Administration Labs

Monitoring Authentication Logs on RHEL 7+

Objective: Monitor and analyze authentication logs (/var/log/secure) on RHEL-based systems to observe login activity, sudo usage, PAM events, and user switching.

Topology:

• 2 lab systems: lab1 and lab2 (both running RHEL 8)
• 1 network switch connecting both systems

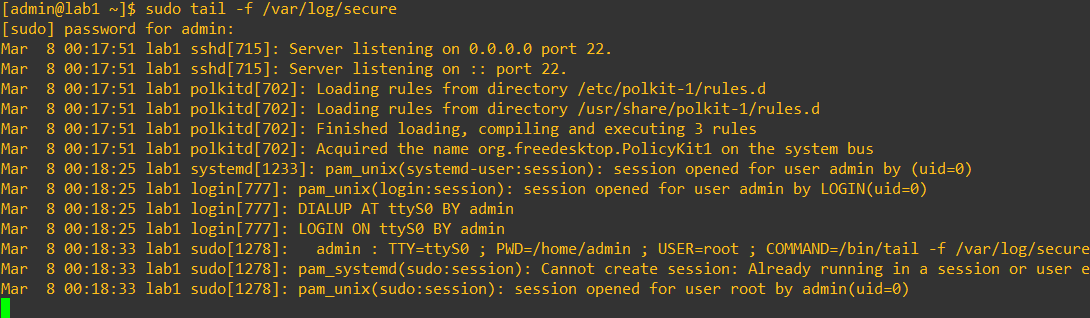

• Step 1: Monitor incoming authentication logs on lab1

  sudo tail -f /var/log/secure

  Note: Many messages may already exist in the log file. Observe the message generated by the sudo command you just ran. All sudo activity is recorded in /var/log/secure.

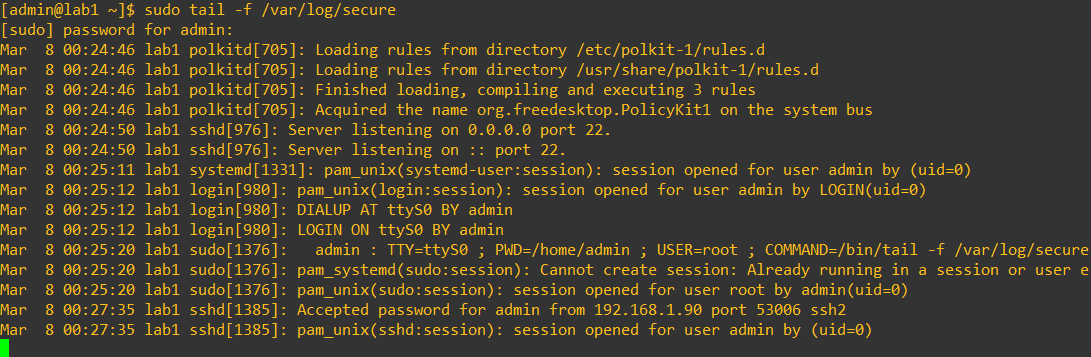

• Step 2: SSH from lab2 into lab1

  ssh admin@192.168.1.89

  Observe the output on lab1. New log entries corresponding to the SSH login session will appear.



  Note: SSH login events are logged by the sshd service through PAM. Logs include authentication results and source IP.

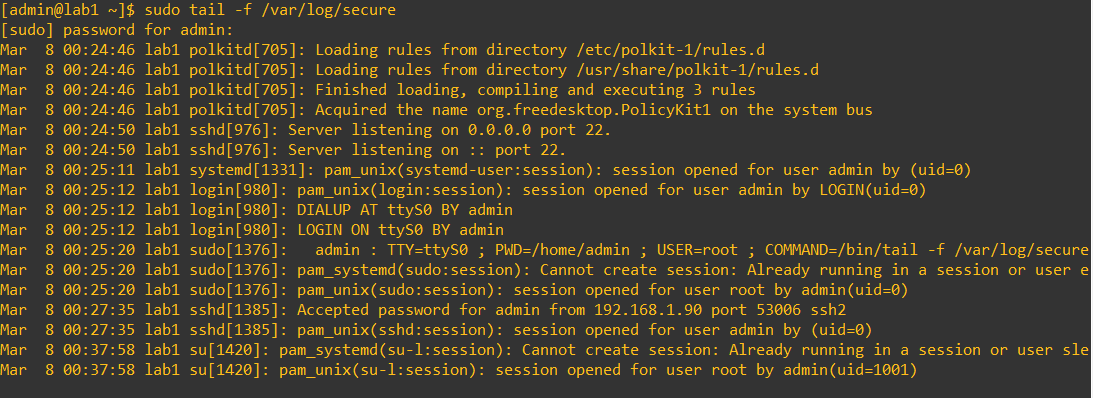

• Step 3: Switch to a different user

  su - root

  Observe the new log messages generated on lab1.



  Note: Switching users via su is logged in /var/log/secure. Session open/close events for root appear. Using su - starts a login-style shell but is not a full system login.

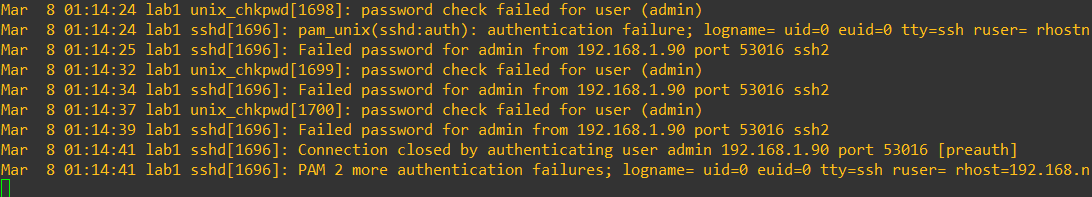

• Step 4: Generate failed login attempts

  ssh admin@192.168.1.89

  Enter the incorrect password three times and observe /var/log/secure on lab1.



  Note: Failed login attempts generate entries from sshd and PAM authentication failures.

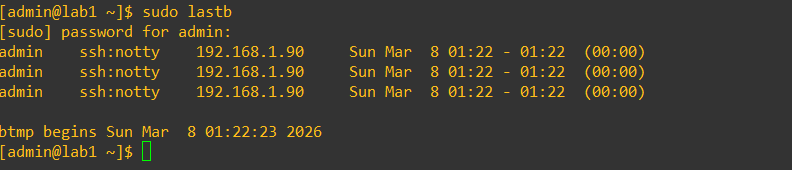

• Step 5: Check failed login attempts

  sudo lastb



  Note: lastb reads /var/log/btmp (binary file) and shows failed login history.

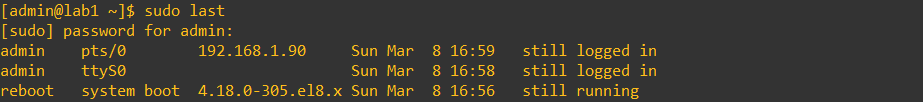

• Step 6: Check successful login history

  sudo last



  You should see:

  • A tty login (local terminal)
  • A pts login (pseudo terminal, e.g., SSH from lab2)

  Note: last reads from /var/log/wtmp, which is also a binary file.

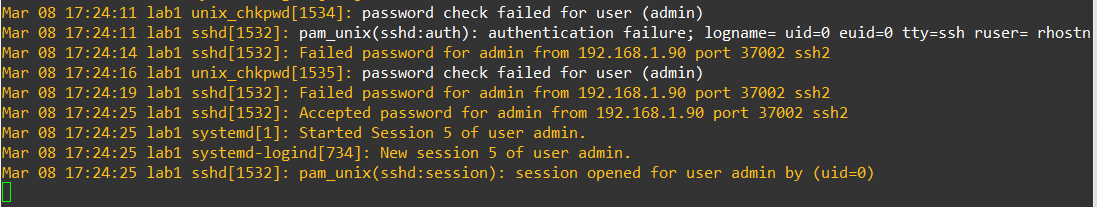

• Optional: View authentication events in the system journal

  journalctl
  journalctl -f



  Note: The system journal collects messages from the kernel and services. Many authentication events (SSH logins, sudo usage, PAM activity) appear here, similar to /var/log/secure.

• Key Notes

  • /var/log/secure captures authentication and authorization activity including SSH logins, local logins, sudo usage, su user switching, and PAM authentication events.
  • This log is one of the first places administrators check for system access or suspicious activity.

• Optional Commands for Practice

  sudo grep sshd /var/log/secure
  sudo grep su /var/log/secure
  sudo grep sudo /var/log/secure

• Additional Notes: Log Message Structure

  Entries in /var/log/secure generally follow this format:

  [timestamp] [hostname] [process_name][PID]: [module/service]: [message]

  Example components:

  • timestamp: Month, day, and time of the event
  • hostname: Name of the system generating the log
  • process_name[PID]: Process responsible for the message
  • module/service: Authentication module or service (often PAM)
  • message: Description of the authentication event (login, logout, sudo usage, etc.)
Optional: If auditd is enabled, /var/log/audit/audit.log provides more detailed security auditing information, including file access, system calls, and privileged actions. Because the audit system operates at the kernel level, it can record security-relevant events that application logs may not capture. These logs are commonly used for security auditing, compliance requirements, and forensic investigations to determine what actions occurred on a system and which user initiated them. The audit log complements /var/log/secure but is not required for basic authentication monitoring.
