Linux Administration Labs

Joining a RHEL 8+ System to Active Directory

Objective: Join a RHEL 8+ system to an Active Directory domain using realmd and SSSD.

Prerequisites:

- realmd - sssd - adcli - oddjob - oddjob-mkhomedir - Time synchronization with DC

• 1. Install Required Packages

  sudo dnf install realmd sssd adcli oddjob oddjob-mkhomedir -y

• 2. Configure DNS

  If using DHCP, configure the client to use the Active Directory DNS server:

  sudo nmcli conn modify "connection_name" ipv4.ignore-auto-dns yes ipv4.dns <AD_DNS_IP>
  sudo nmcli conn up "connection_name"

  Optional: Configure DNS search domain:

  sudo nmcli conn modify "connection_name" ipv4.dns-search home.lab

• 3. Set Hostname

  Ensure the system has a proper FQDN before joining the domain:

  sudo hostnamectl set-hostname rhel1.home.lab

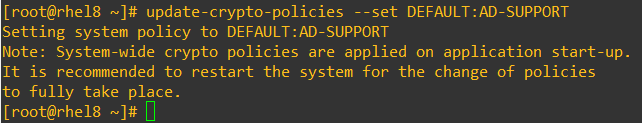

• 4. Configure Crypto Policy (RHEL 8+ Requirement)

  RHEL 8+ enforces stricter crypto policies that may prevent successful Kerberos negotiation with AD.

  sudo update-crypto-policies --set DEFAULT:AD-SUPPORT

  Important: This must be completed before running realm join. If the join is performed first, the computer object may need to be removed from Active Directory and rejoined.



• 5. Modify Kerberos Configuration (If Required)

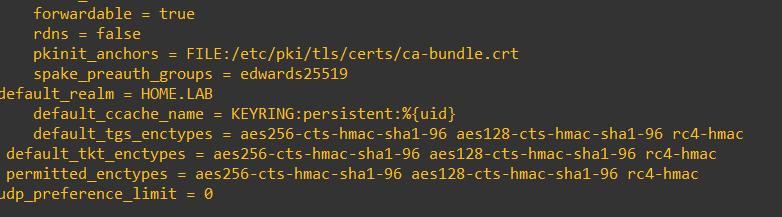

  Edit the Kerberos configuration file:

  sudo vi /etc/krb5.conf

  Under [libdefaults], add:

  default_tgs_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96 rc4-hmac
  default_tkt_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96 rc4-hmac
  permitted_enctypes   = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96 rc4-hmac

  <-- this can be removed

  Reboot after making changes:

  sudo reboot

  -->

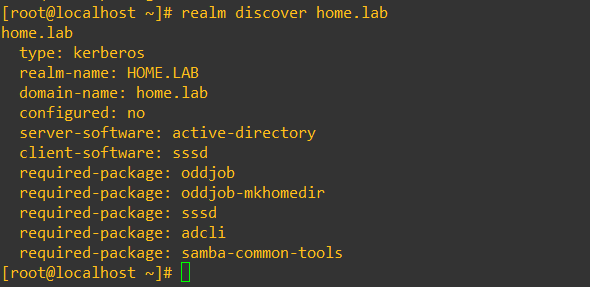

• 6. Discover the Domain

  sudo realm discover home.lab



• 7. Join the Domain

  sudo realm join -U Administrator home.lab

  Enter the Active Directory administrator password when prompted.

  Verify domain membership:

  sudo realm list

• 8. Update DNS Registration

  Force the system to register its DNS records in Active Directory:

  sudo adcli update --domain=home.lab

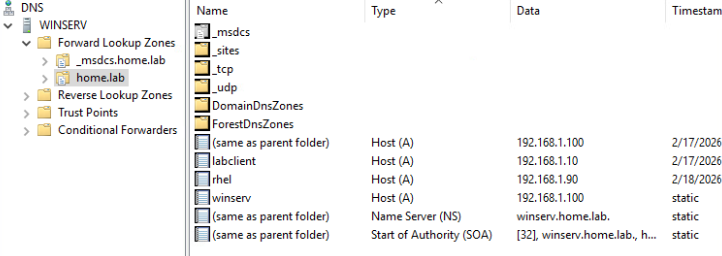

  - In the server manager click Tools -> DNS -> Forward Lookup Zones -> your.lab and you should see an A record for the computer (rhel)

  Verify name resolution:

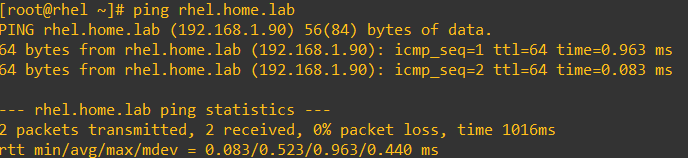

  ping rhel.home.lab


  dig rhel1.home.lab
